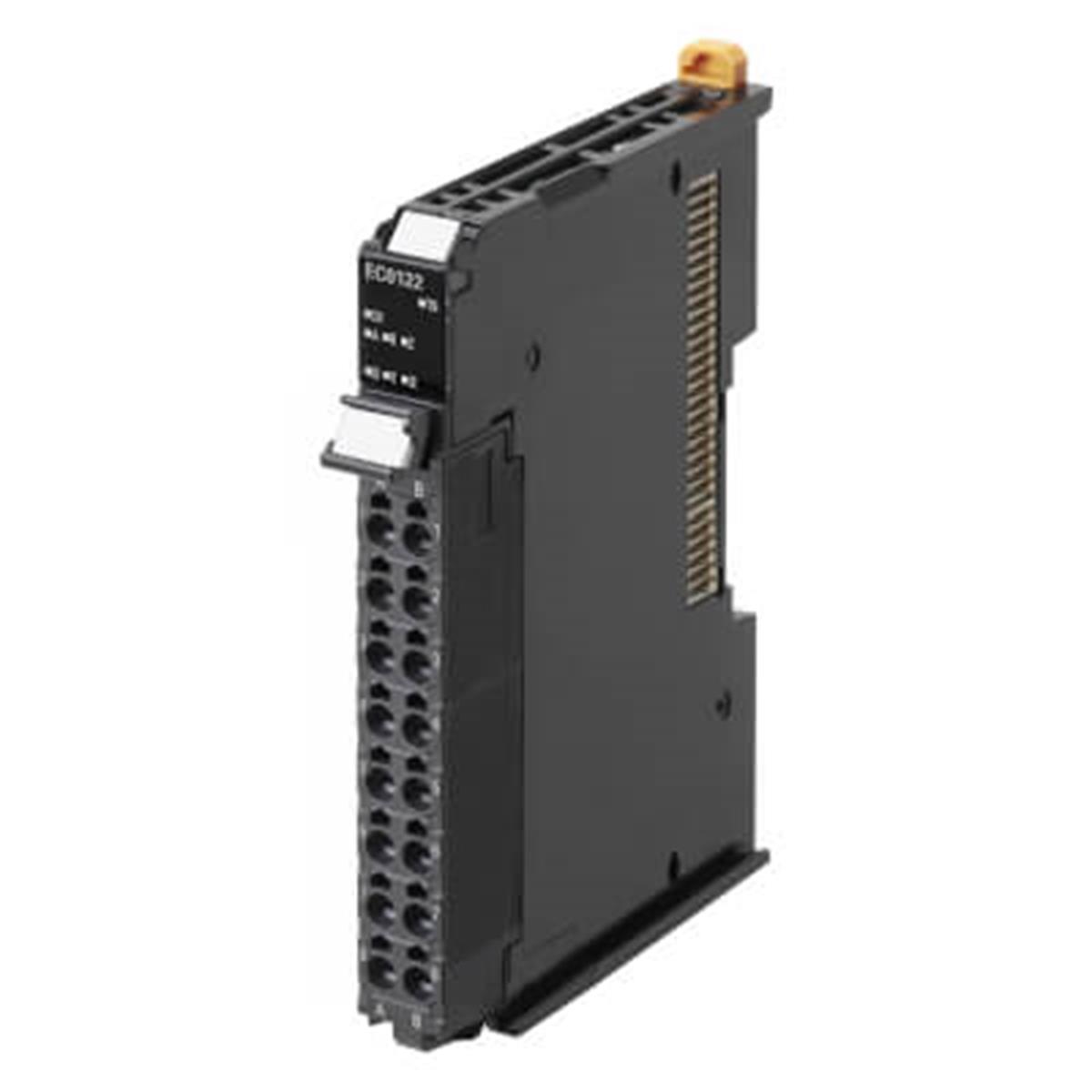

Omron NX-EC0212
(NX-EC0212)
Sepetteki Son Fiyat
Fiyat
:
₺0,00 + KDV
KDV Dahil
:
₺0,00
Sepet Fiyatı
:
FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!
2 x Incremental Encoder NPN Inputs, Phases A and B: Single-phase 500 kHz (phase difference pulse Input x4: 125 kHz), Phase Z: 125 kHz, screwless push-in connector, 12 mm wide
FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!
| I/O system |
NX I/O Bus |
| Type of module |
Encoder input |
| Digital input type |
Incremental encoder, NPN |
| Digital output type |
None |
| Signal processing |
Free running, Synchronous, Task period prioritized |
| Number of encoder input channels |
2 |
| Max. encoder input frequency |
500 kHz |
| Number of pulse output channels |
0 |
| Max. pulse output frequency |
0 kHz |
| IO link master |
x |
| I/O connection type |
Push-in |
| Number of I/O connectors |
1 |
| Detachable I/O connector |
|
| Suitable for safety functions |
x |
| SIL according to IEC 61508 |
None |
| Number of IOV (V+) terminals |
2 |
| Number of IOG (V-) terminals |
2 |
| Degree of protection (IP) |
IP20 |
| Height |
100 mm |
| Width |
12 mm |
| Depth |
71 mm |
| Weight |
70 g |
