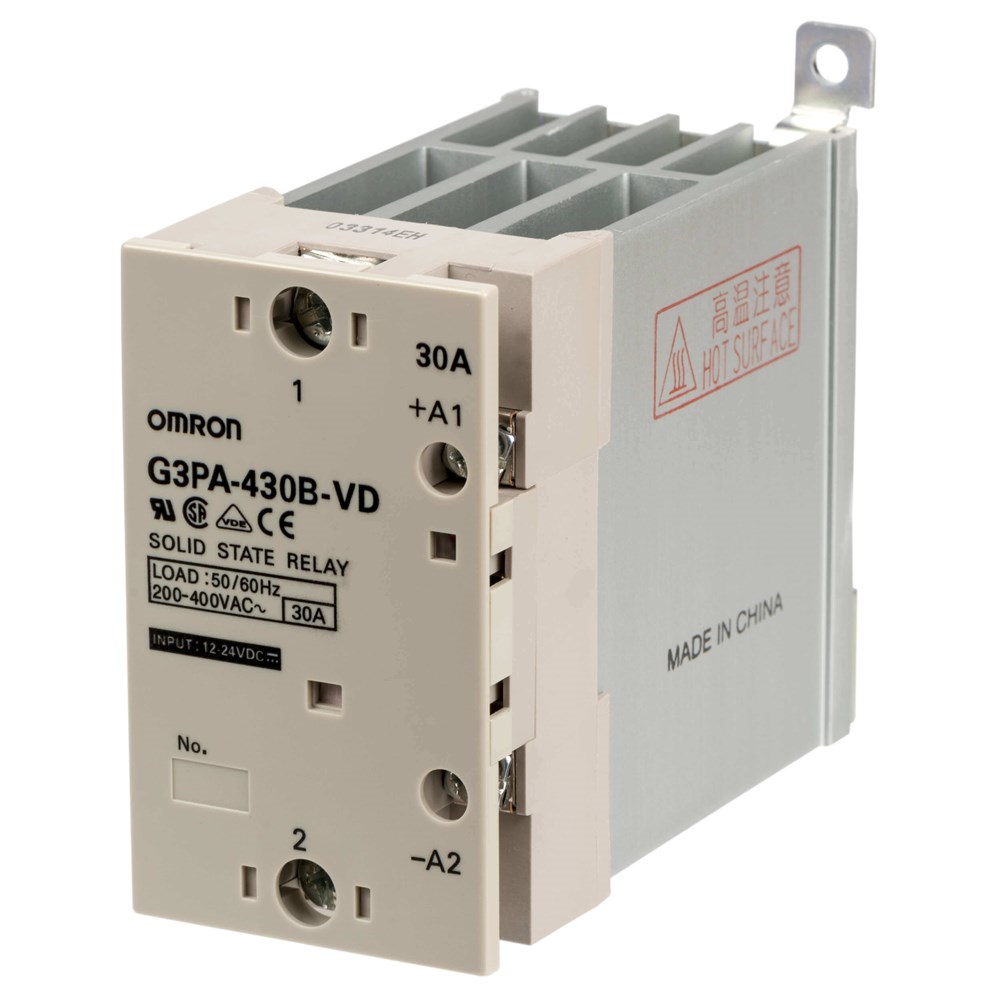

Omron G3PA-430B-VD 12-24VDC
(G3PA-430B-VD 12-24VDC)
Sepetteki Son Fiyat
Fiyat
:
₺0,00 + KDV
KDV Dahil
:
₺0,00
Sepet Fiyatı
:
FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!
Solid state relay, DIN rail/surface mounting, 1-pole, 30 A, 440 VAC max
FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!
| Application |
ON/OFF control |
| Number of phases |
1 |
| Number of poles |
1 |
| Mounting method |
DIN rail |
| Terminal |
Screw |
| With LED indicator |
|
| Rated operational voltage, AC |
181-400 V |
| Operating voltage range, AC |
180-440 V |
| Rated operation current Ie at AC-1 |
30 A |
| Rated load current Close mounting |
24 A |
| Permissible I²t value |
1800 A²s |
| Height |
100 mm |
| Width |
47 mm |
| Depth |
100 mm |
| Supply voltage DC |
12-24 V |
| Control current max. |
7 mA |
| Must operate voltage max. |
9.2 V |
| Must release voltage min. |
1 V |
| Maximum operating temperature |
80 °C |
| Minimum operating temperature |
-30 °C |
| Isolation |
Phototriac |
| Switching at zero-crossing |
