Omron F3SG-4SRB1200-45 (F3SG-4SRB1200-45)

Marka : Omron

Fiyat : ₺0,00 + KDV

KDV Dahil : ₺0,00

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

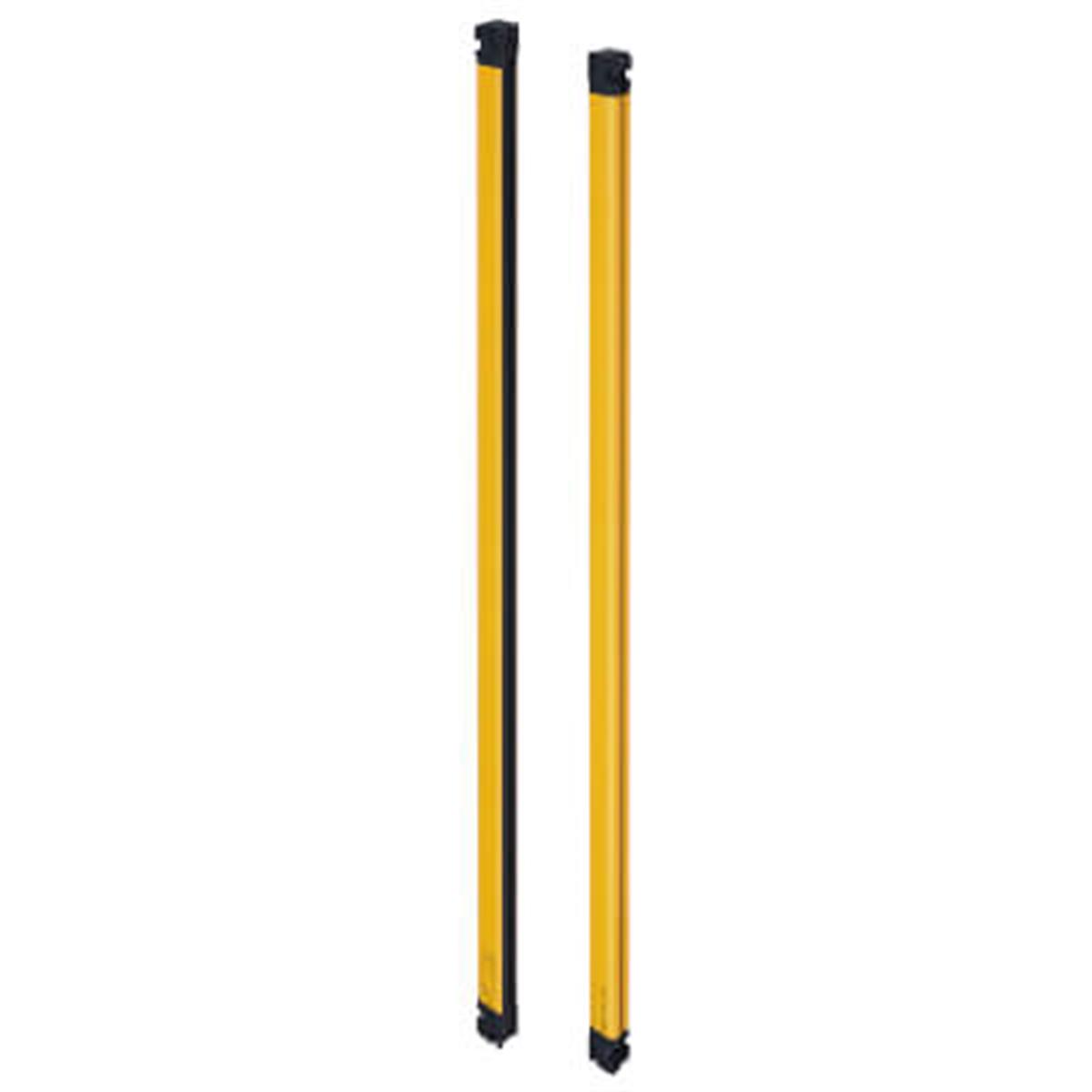

Safety Light Curtain, F3SG-SRB Standard, Type 4, 45 mm resolution, range 0.3 to 20.0 m, height 1200 mm, PNP/NPN

ADET

Sensing method	Safety light curtain
Type of protection	Arm/leg protection
Number of beams	30
Detection capability	45 mm
Safety field height	1200 mm
Type of safety according to IEC 61496-1	4
Beam spacing	40 mm
Maximum safety range	20 m
Minimum operating distance	0.3 m
Key features	Auxiliary output, Blanking, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, Operating range selection, PNP/NPN selection, Pre-reset, Response time adjustment, Warning zone
Degree of protection (IP)	IP65/IP67/IP67G
Cascadable	+
Number of protected semiconductor outputs	2
Number of semiconductor outputs with signalling function	1
Type of switching output of the OSSD	PNP/NPN
Response time	8 ms
With muting function	+
With beam coding	+
Communication option(s)	Bluetooth, IO-Link, USB
Suitable for safety functions	+
Scope of delivery	Transmitter and receiver
Wavelength of the sensor	870 nm
Connection method	Root connector (order separately)
Supply voltage DC	19.2-28.8 V
Max. output current at protected output	300 mA
Ambient temperature	-30-55 °C
Overall length	1200 mm
Height of sensor	38 mm
Width sensor	32 mm
Number of fixed side-mount brackets	2
Number of adjustable side-mount brackets	2
Number of intermediate brackets	1
