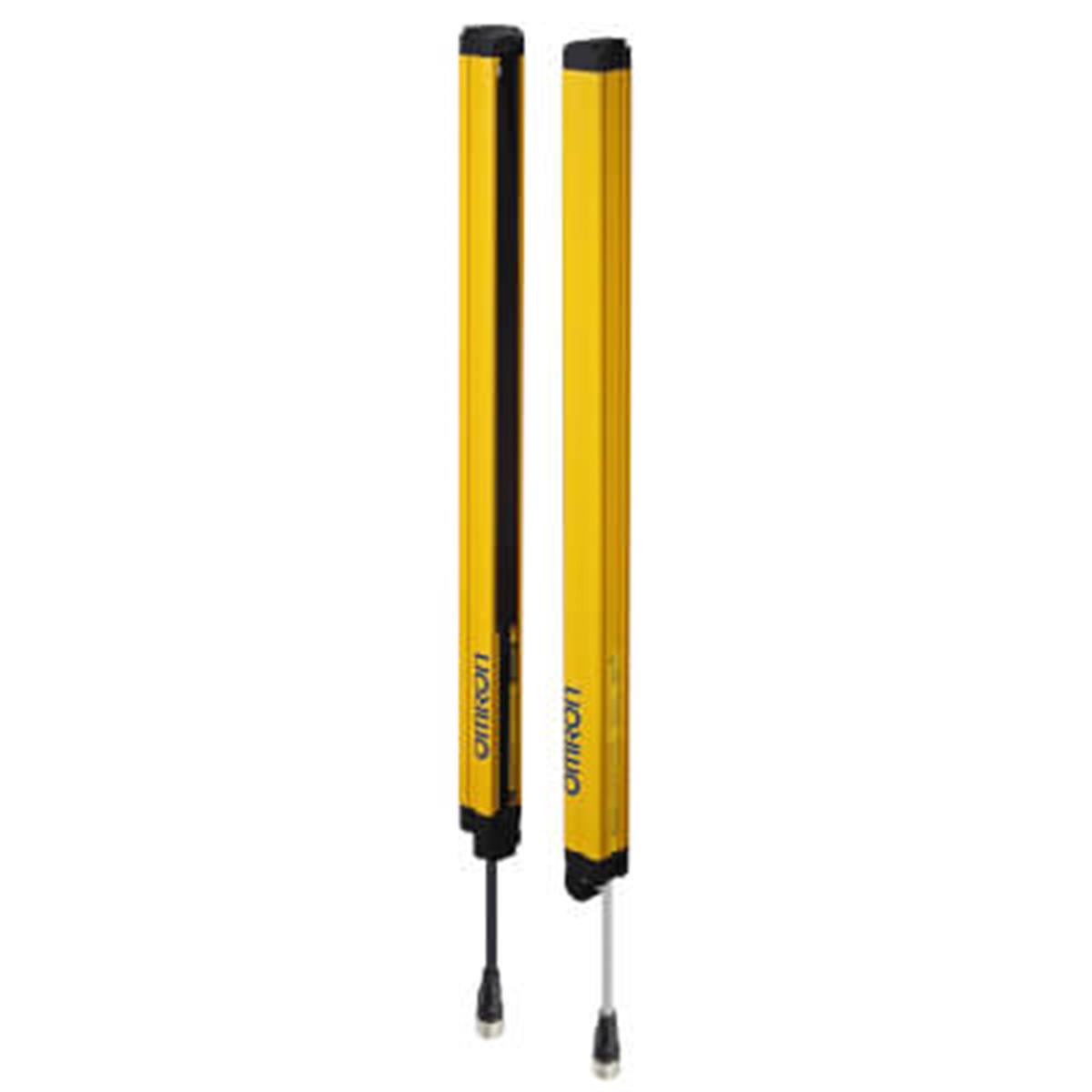

Safety Sensor, F3SG-R Advanced, Type 4, 14 mm resolution, range 0.3 to 10.0 m, height 1200 mm, PNP/NPN
FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!
| Type of safety according to IEC 61496-1 |
4 |
| Type of protection |
Finger protection |
| Detection capability |
14 mm |
| Safety field height |
1200 mm |
| Beam gap |
10 mm |
| Number of beams |
119 |
| Number of protected semiconductor outputs |
2 |
| Number of semiconductor outputs with signalling function |
1 |
| Maximum safety range |
10 m |
| Minimum operating distance |
0.3 m |
| Response time |
13 ms |
| Cascadable |
|
| With muting function |
|
| With beam coding |
|
| Type of switching output of the OSSD |
PNP/NPN |
| Communication port(s) |
USB |
| Suitable for safety functions |
|
| Scope of delivery |
Transmitter and receiver |
| Wavelength of the sensor |
870 nm |
| Connection method |
M12 pigtail Smartclick connector |
| Supply voltage DC |
19.2-28.8 V |
| Voltage type |
DC |
| Max. output current at protected output |
300 mA |
| Degree of protection (IP) |
IP67 |
| Ambient temperature |
-10-55 °C |
| Overall length |
1248 mm |
| Height of sensor |
35 mm |
| Width sensor |
35 mm |
