Omron F3SG-4PGA1070-4C
(F3SG-4PGA1070-4C)
Sepetteki Son Fiyat
Fiyat
:
₺0,00 + KDV
KDV Dahil
:
₺0,00
Sepet Fiyatı
:
FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

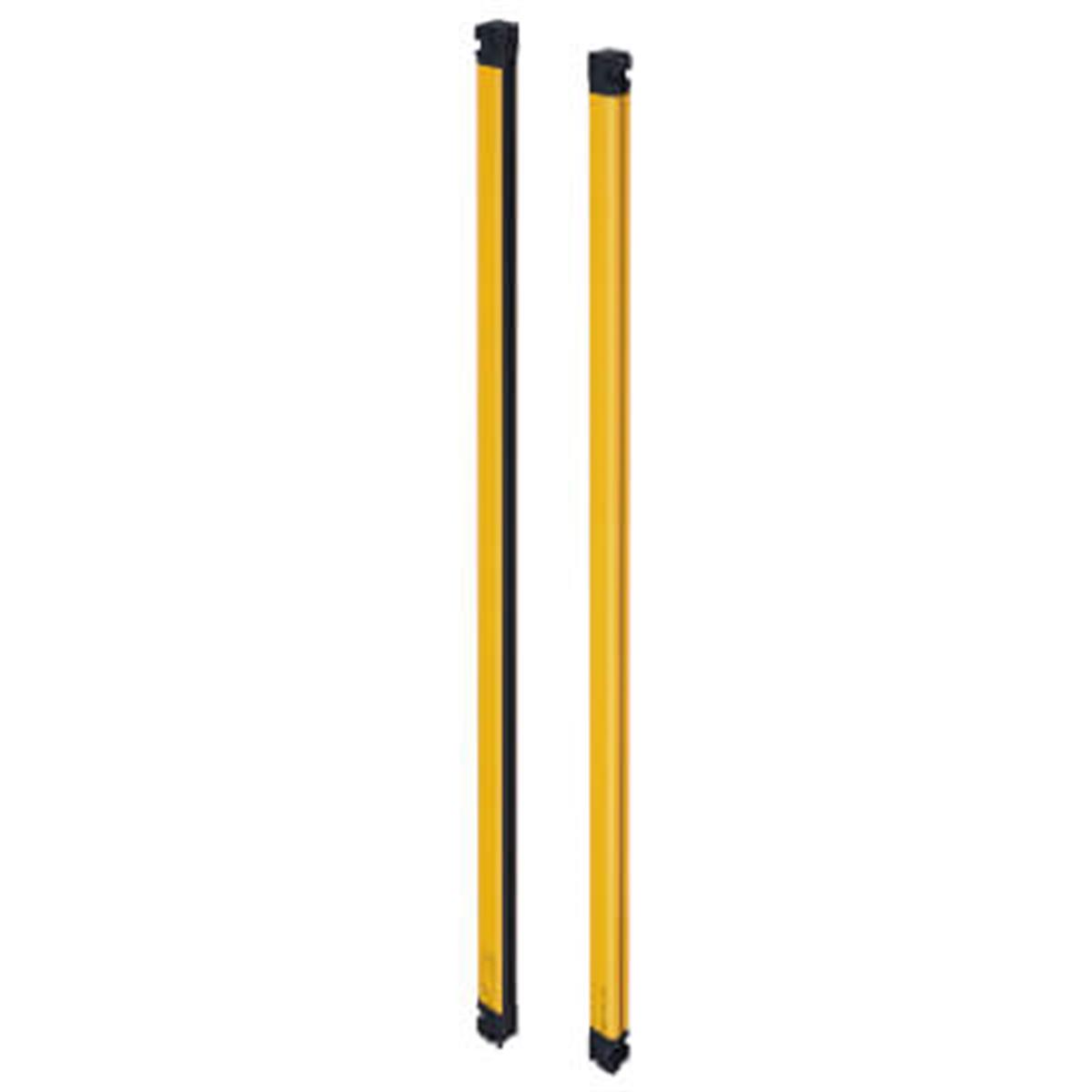

Safety Multi-Light Beam, F3SG-PG Perimeter Guarding, Type 4, 4 beams, range 0.5 to 5 m, product length 1070 mm, Active/passive
FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!
| Sensing method |
Safety multi-beam |
| Type of protection |
Body protection |
| Number of beams |
4 |
| Safety field height |
1070 mm |
| Type of safety according to IEC 61496-1 |
4 |
| Beam spacing |
300 mm |
| Maximum safety range |
5 m |
| Minimum operating distance |
0.5 m |
| Key features |
Active/passive, Area Beam Indicator, Auxiliary output, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, PNP/NPN selection, Response time adjustment |
| Degree of protection (IP) |
IP65/IP67 |
| Cascadable |
X |
| Number of protected semiconductor outputs |
2 |
| Number of semiconductor outputs with signalling function |
1 |
| Type of switching output of the OSSD |
PNP/NPN |
| Response time |
8 ms |
| With muting function |
|
| With beam coding |
|
| Communication option(s) |
Bluetooth, IO-Link, USB |
| Scope of delivery |
Transmitter and receiver |
| Wavelength of the sensor |
870 nm |
| Connection method |
Root connector (order separately) |
| Max. output current at protected output |
300 mA |
| Ambient temperature |
-30-55 °C |
| Number of fixed side-mount brackets |
2 |
| Number of adjustable side-mount brackets |
2 |
| Number of intermediate brackets |
1 |
