Omron D41D-2CD-025N2
(D41D-2CD-025N2)
Sepetteki Son Fiyat
Fiyat
:
₺0,00 + KDV
KDV Dahil
:
₺0,00
Sepet Fiyatı
:
FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

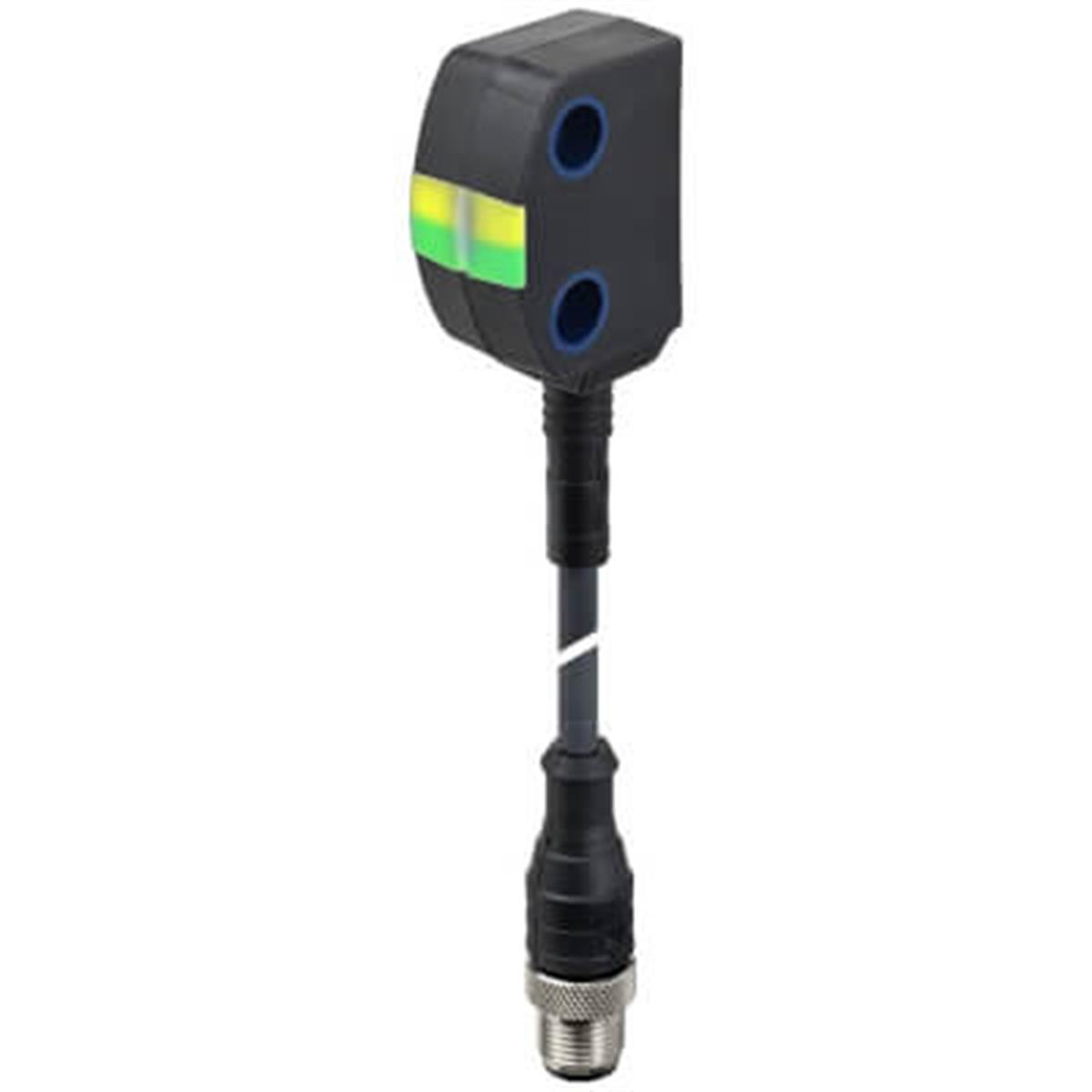

Non-contact Interlock Switch, RFID High-coded, PNP, Test Pulse, Pigtail with M12 connector 8-pole
FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!
| Coding |
Unique |
| Connection method |
M12 pigtail connector |
| Degree of protection (IP) |
IP65/IP67 |
| Diagnostic LED |
+ |
| Door contacts NC |
2 |
| Door contacts NO |
1 |
| Door switch type |
Non-contact, RFID coded |
| Guard-lock |
x |
| High coding level |
+ |
| With LED indicator |
+ |
| Material housing |
PBT |
| Number of auxiliary outputs |
1 |
| Auxiliary monitoring output |
PNP type, short-circuit proof |
| Cable exit direction |
Bottom |
| LED indicators |
Actuator detected (yellow) |
| Make before break |
x |
| Max. differential travel |
20 % |
| Max. operating distance ON to OFF |
18 mm |
| Min. operating distance OFF to ON |
10 mm |
| Mounting method |
M4 screws |
| Number of connectable switches |
30 max. (wiring length: 100 m max.) |
| Number of OSSD |
2 |
| Output test pulses |
+ |
| Output type |
PNP |
| Shape |
Rectangular compact |
| Switch without actuator |
+ |
| Teaching limitation |
x |
| Vibration resistance |
10 to 55 Hz, amplitude 1.0 mm |
