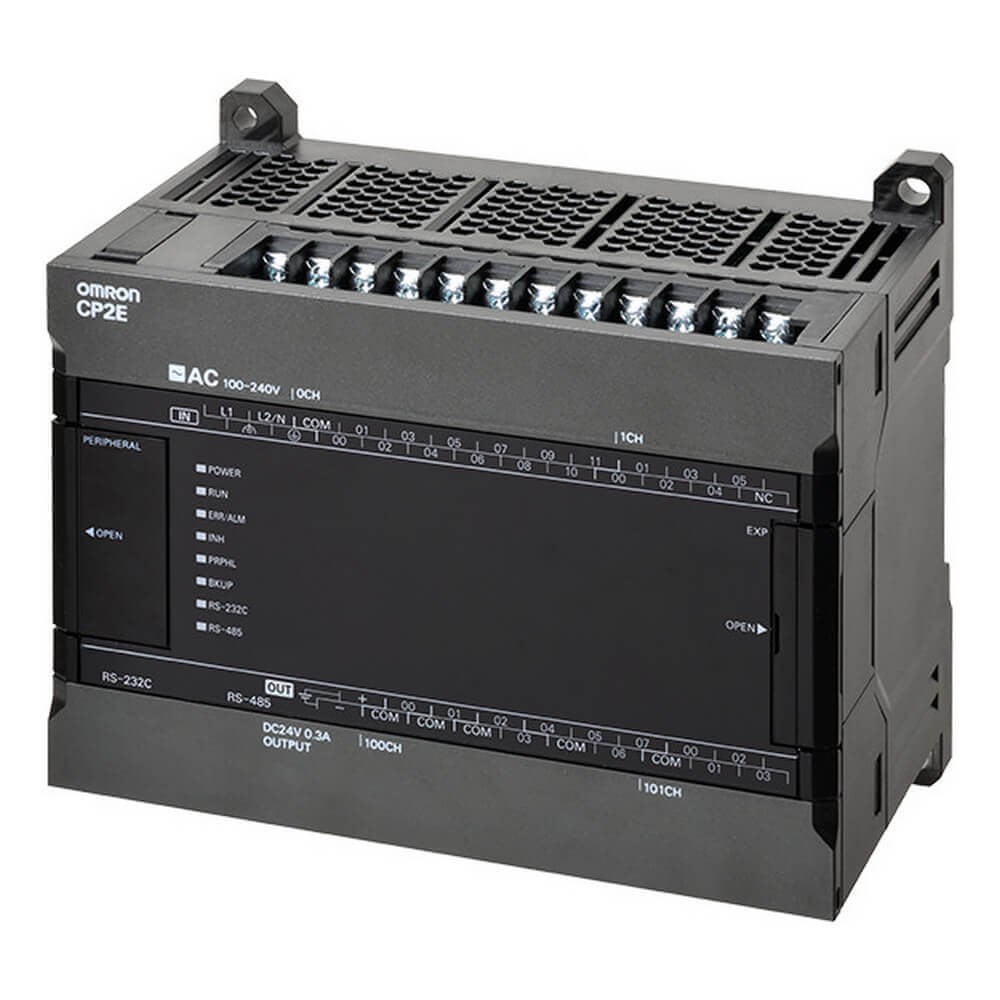

Omron CP2E-S30DT1-D (CP2E-S30DT1-D)

Marka : Omron

Fiyat : ₺0,00 + KDV

KDV Dahil : ₺0,00

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

CP2E series compact PLC - Standard Type; 18 DI, 12DO; PNP output; Power supply 24 VDC; 8 kStep Program memory

ADET

Supply voltage type	DC
Number of digital inputs	18
Input type	PNP/NPN
Number of digital outputs	12
Output type	PNP
Program capacity	16 K steps
Data memory capacity	8 K words
Logic execution time	0.23 µs
Communication port(s)	Serial RS-232C, Serial RS-485, USB
Number of Ethernet ports	0
Number of USB ports	1
Number of RS-232 ports	1
Number of RS-485 ports	1
Communication option(s)	CompoBus/S Slave
Number of encoder input channels	6
Max. encoder input frequency	100 kHz
Max. number of PTP axes	2
Max. pulse output frequency	100 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels	24
Max. number of local I/O points	150
Max. number of expansion units	3
Built-in auxiliary 24 VDC output	0 mA
Operating temperature range	-20-60 °C
Height	90 mm
Width	130 mm
Depth	80 mm
Weight	0 g
