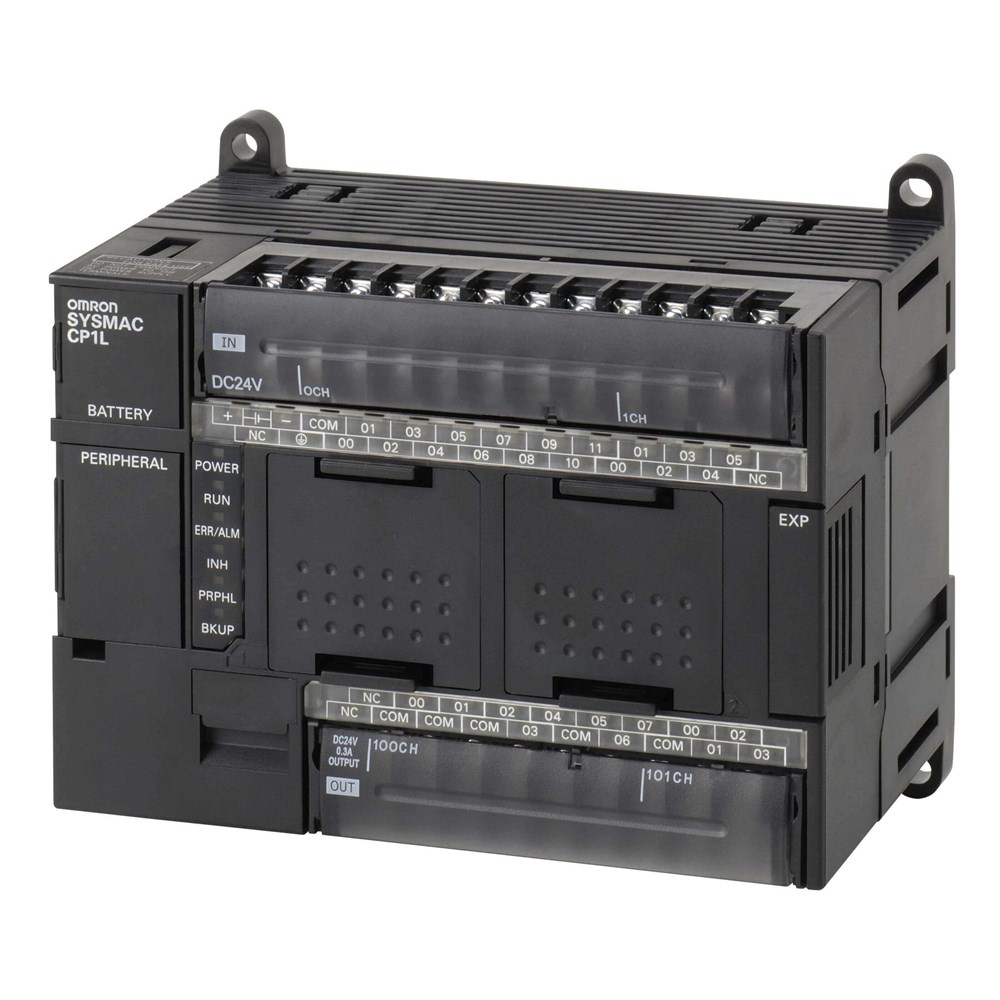

Omron CP1L-M30DR-A (CP1L-M30DR-A)

Marka : Omron

Fiyat : ₺0,00 + KDV

KDV Dahil : ₺0,00

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

PLC, 100-240 VAC supply, 18 x 24 VDC inputs, 12 x relay outputs 2 A, 10K steps program + 32K words data memory

ADET

Supply voltage type	AC
Number of digital inputs	18
Input type	PNP/NPN
Number of digital outputs	12
Output type	Relay
Program capacity	10 K steps
Data memory capacity	32 K words
Logic execution time	0.55 µs
Communication port(s)	USB
Number of Ethernet ports	0
Number of USB ports	1
Number of RS-232 ports	0
Number of RS-485 ports	0
Communication option(s)	CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
Number of encoder input channels	4
Max. encoder input frequency	100 kHz
Max. number of PTP axes	0
Max. pulse output frequency	0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels	25
Max. number of local I/O points	150
Max. number of expansion units	3
Built-in auxiliary 24 VDC output	300 mA
Operating temperature range	0-55 °C
Height	90 mm
Width	130 mm
Depth	85 mm
Weight	610 g
