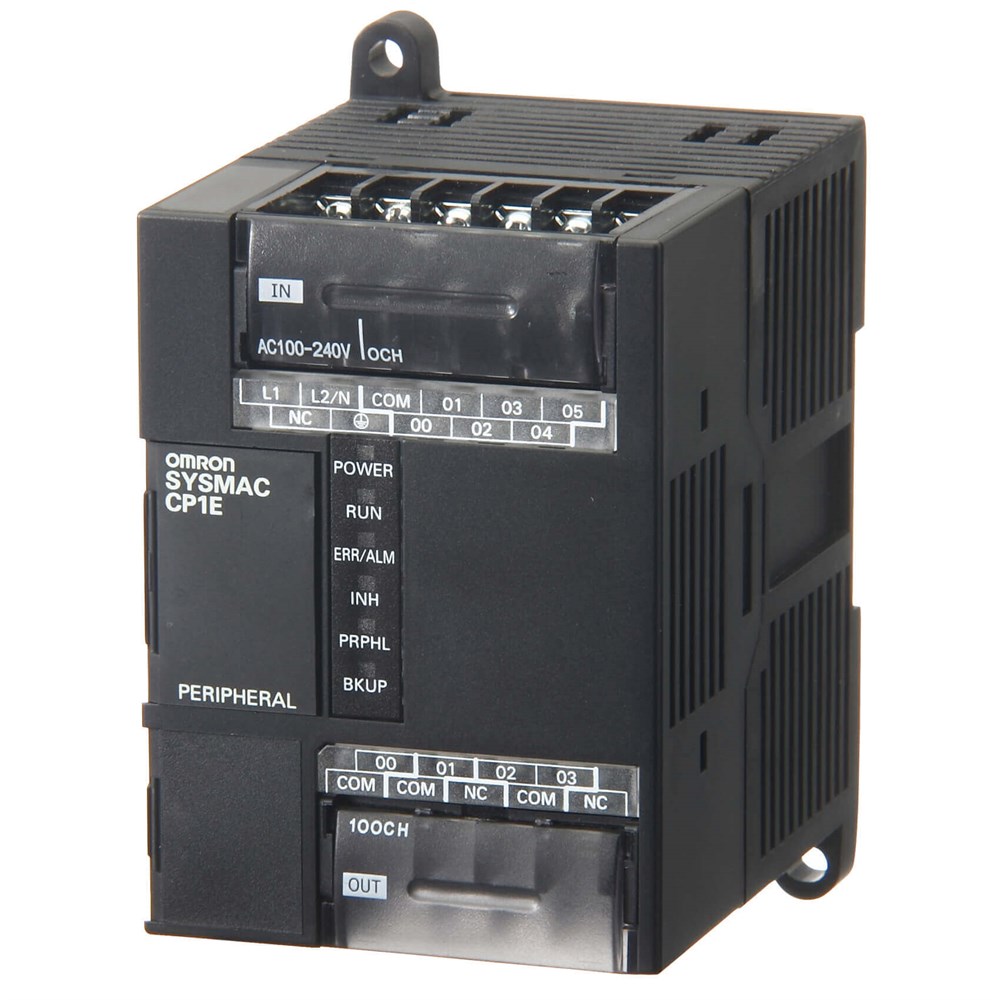

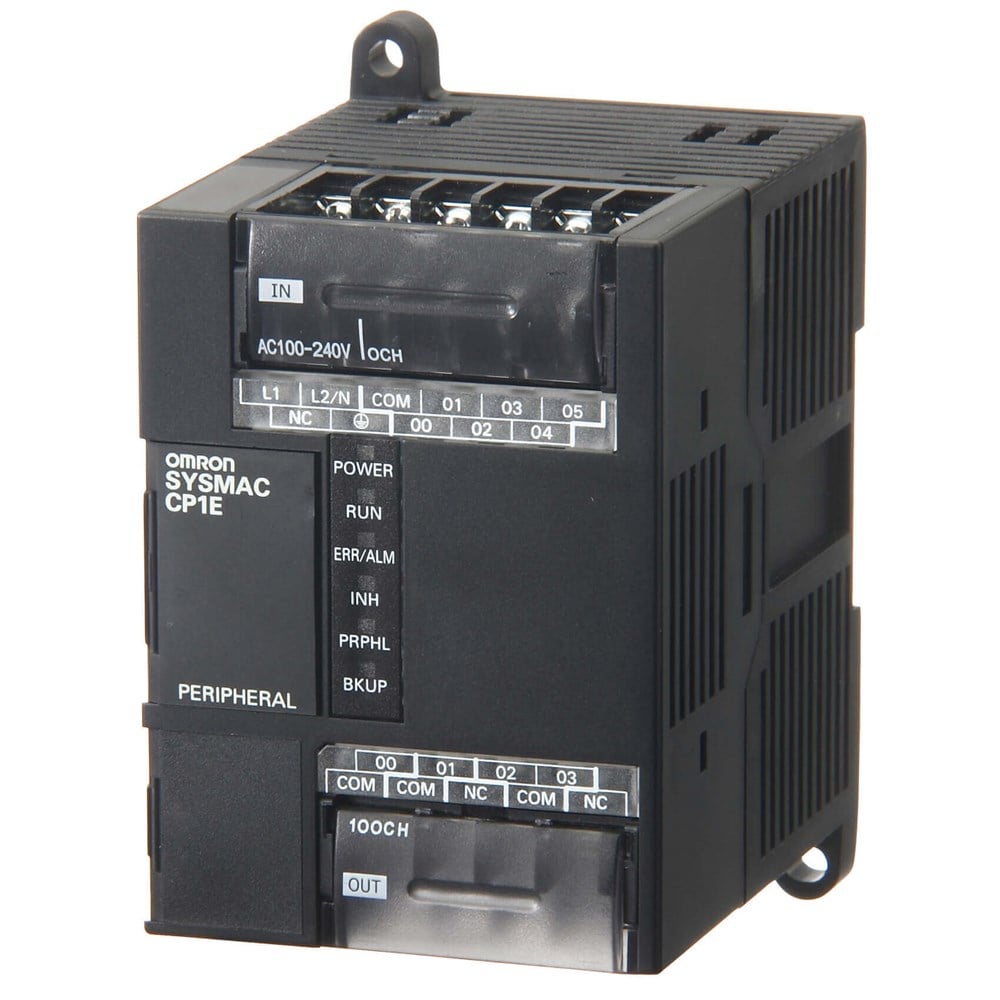

Omron CP1E-E10DT1-D
(CP1E-E10DT1-D)
Sepetteki Son Fiyat
Fiyat
:
₺0,00 + KDV
KDV Dahil
:
₺0,00
Sepet Fiyatı
:
FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!
PLC, 24 VDC supply, 6 x 24 VDC inputs, 4 x PNP outputs 0.3 A, 2K steps program + 2K words data memory
FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!
| Supply voltage type |
DC |
| Number of digital inputs |
6 |
| Input type |
PNP/NPN |
| Number of digital outputs |
4 |
| Output type |
PNP |
| Program capacity |
2 K steps |
| Data memory capacity |
2 K words |
| Logic execution time |
1.19 µs |
| Communication port(s) |
USB |
| Number of Ethernet ports |
0 |
| Number of USB ports |
1 |
| Number of RS-232 ports |
0 |
| Number of RS-485 ports |
0 |
| Communication option(s) |
None |
| Max. encoder input frequency |
10 kHz |
| Max. number of PTP axes |
0 |
| Max. pulse output frequency |
0 kHz |
| Function Block programming |
|
| Battery-free memory backup |
|
| Real-time clock |
|
| Analog option boards |
|
| Max. number of analog I/O channels |
0 |
| Max. number of local I/O points |
10 |
| Max. number of expansion units |
0 |
| Built-in auxiliary 24 VDC output |
0 mA |
| Operating temperature range |
0-55 °C |
| Height |
90 mm |
| Width |
66 mm |
| Depth |
85 mm |
| Weight |
300 g |
