Omron C1PE-E10DR-A
Omron C1PE-E10DR-A

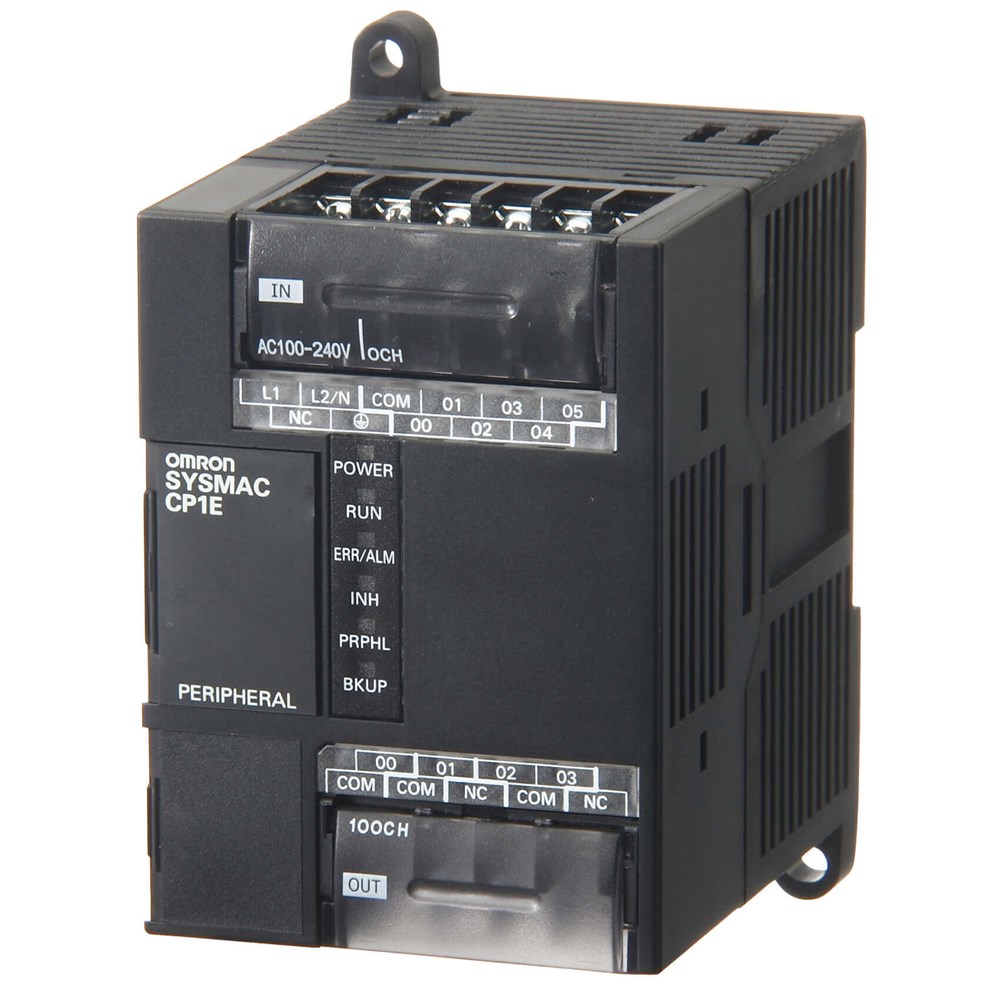

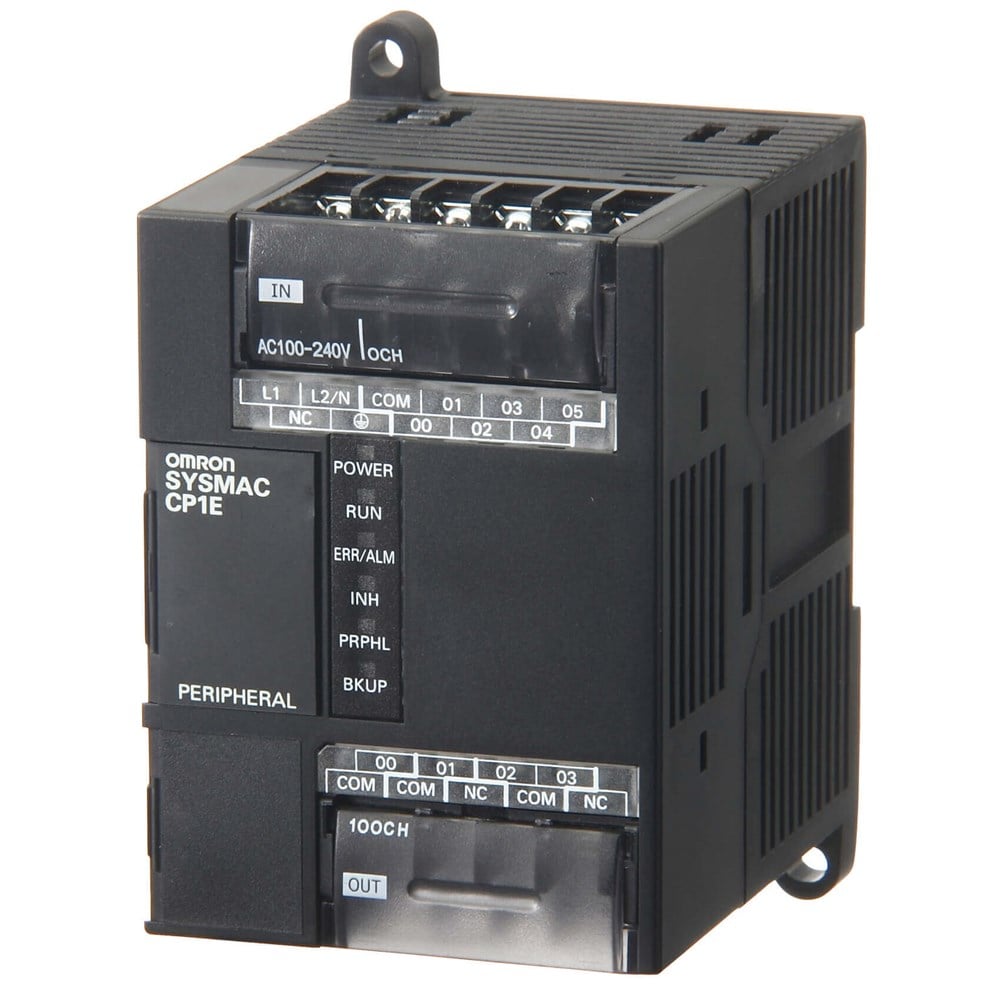

Omron CP1E-E10DR-A (CP1E-E10DR-A)

Marka : Omron
Fiyat : ₺0,00  + KDV
KDV Dahil : ₺0,00

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!





PLC, 100-240 VAC supply, 6 x 24 VDC inputs, 4 x relay outputs 2 A, 2K steps program + 2K words data memory

ADET

Artır Azalt





Supply voltage type AC
Number of digital inputs 6
Input type PNP/NPN
Number of digital outputs 4
Output type Relay
Program capacity 2 K steps
Data memory capacity 2 K words
Logic execution time 1.19 µs
Communication port(s) USB
Number of Ethernet ports 0
Number of USB ports 1
Number of RS-232 ports 0
Number of RS-485 ports 0
Communication option(s) None
Max. encoder input frequency 10 kHz
Max. number of PTP axes 0
Max. pulse output frequency 0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels 0
Max. number of local I/O points 10
Max. number of expansion units 0
Built-in auxiliary 24 VDC output 0 mA
Operating temperature range 0-55 °C
Height 90 mm
Width 66 mm
Depth 85 mm
Weight 300 g
