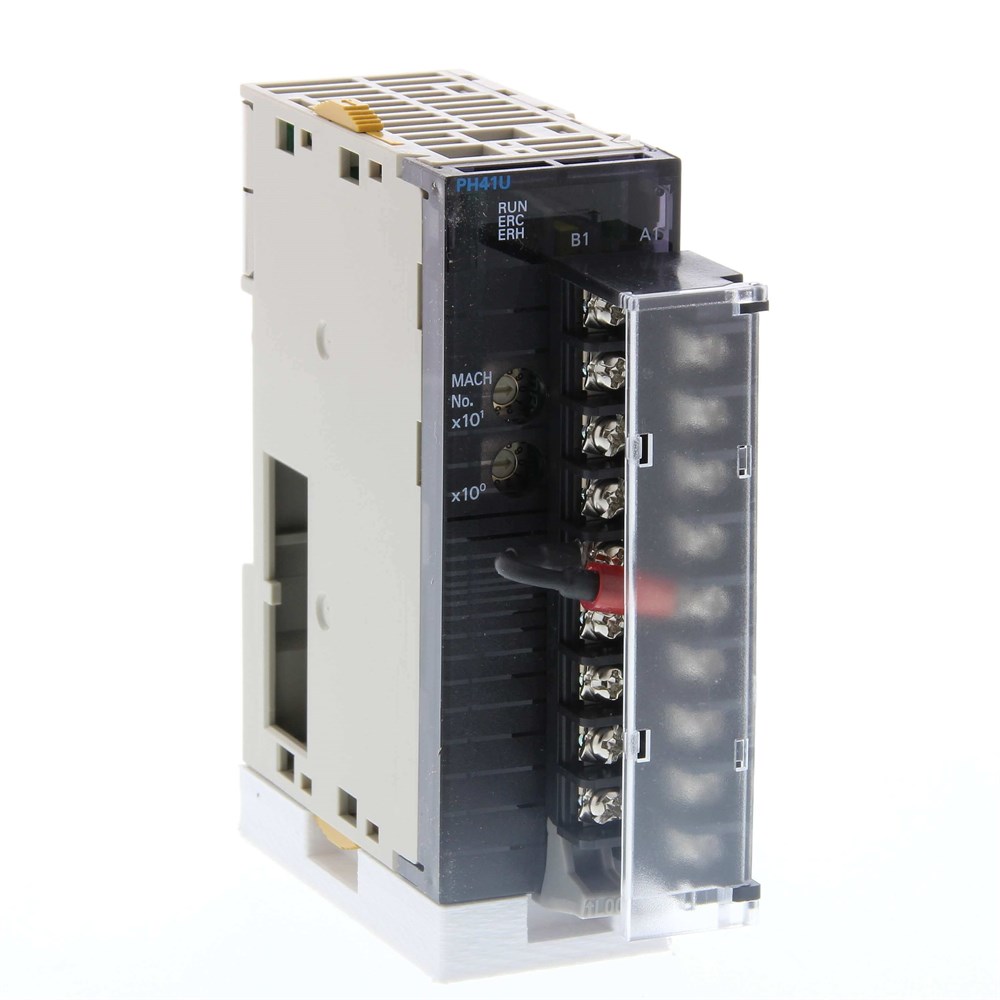

Omron CJ1W-PH41U
(CJ1W-PH41U)
Sepetteki Son Fiyat
Fiyat
:
₺0,00 + KDV
KDV Dahil
:
₺0,00
Sepet Fiyatı
:
FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!
Universal analog input unit, high resolution, 4 x inputs ±100mV up to ±10 V, potentiometer, 0 to 20 mA, 4 to 20 mA, thermocouple (K, J, T, E, L, U, N, R, S, B), Pt100 (3-wire), screw terminal
FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!
| I/O system |
CJ I/O Bus |
| Expansion unit type |
Special I/O Unit |
| Type of module |
Analog I/O |
| Number of analog inputs |
4 |
| Temperature input type |
B, E, J, K, L, N, Pt100, R, S, T, U |
| Linear analog input type |
-1.25 to 1.25 V, -10 to 10 V, -100 to 100 mV, -5 to 5 V, 0 to 1.25 V, 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA, Potentiometer |
| Resolution of the analog inputs |
18 Bit |
| Number of analog outputs |
0 |
| Linear analog output type |
None |
| I/O connection type |
Screw |
| Number of I/O connectors |
1 |
| Detachable I/O connector |
|
| Suitable for safety functions |
|
| Height |
90 mm |
| Width |
31 mm |
| Depth |
89 mm |
| Weight |
207 g |
