Omron 3G3RX2-A4150
(3G3RX2-A4150)
Sepetteki Son Fiyat
Fiyat
:
₺0,00 + KDV
KDV Dahil
:
₺0,00
Sepet Fiyatı
:
FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

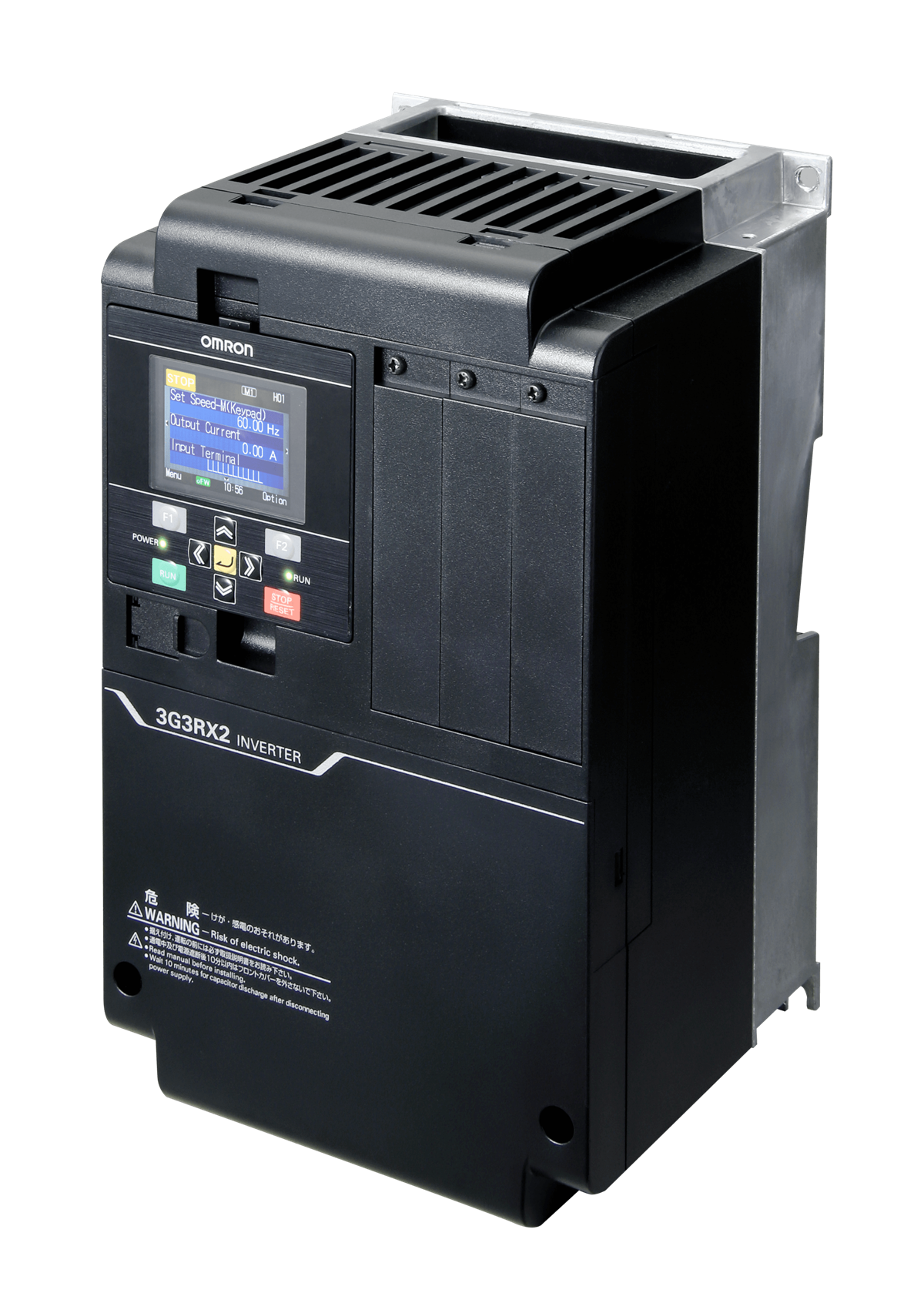

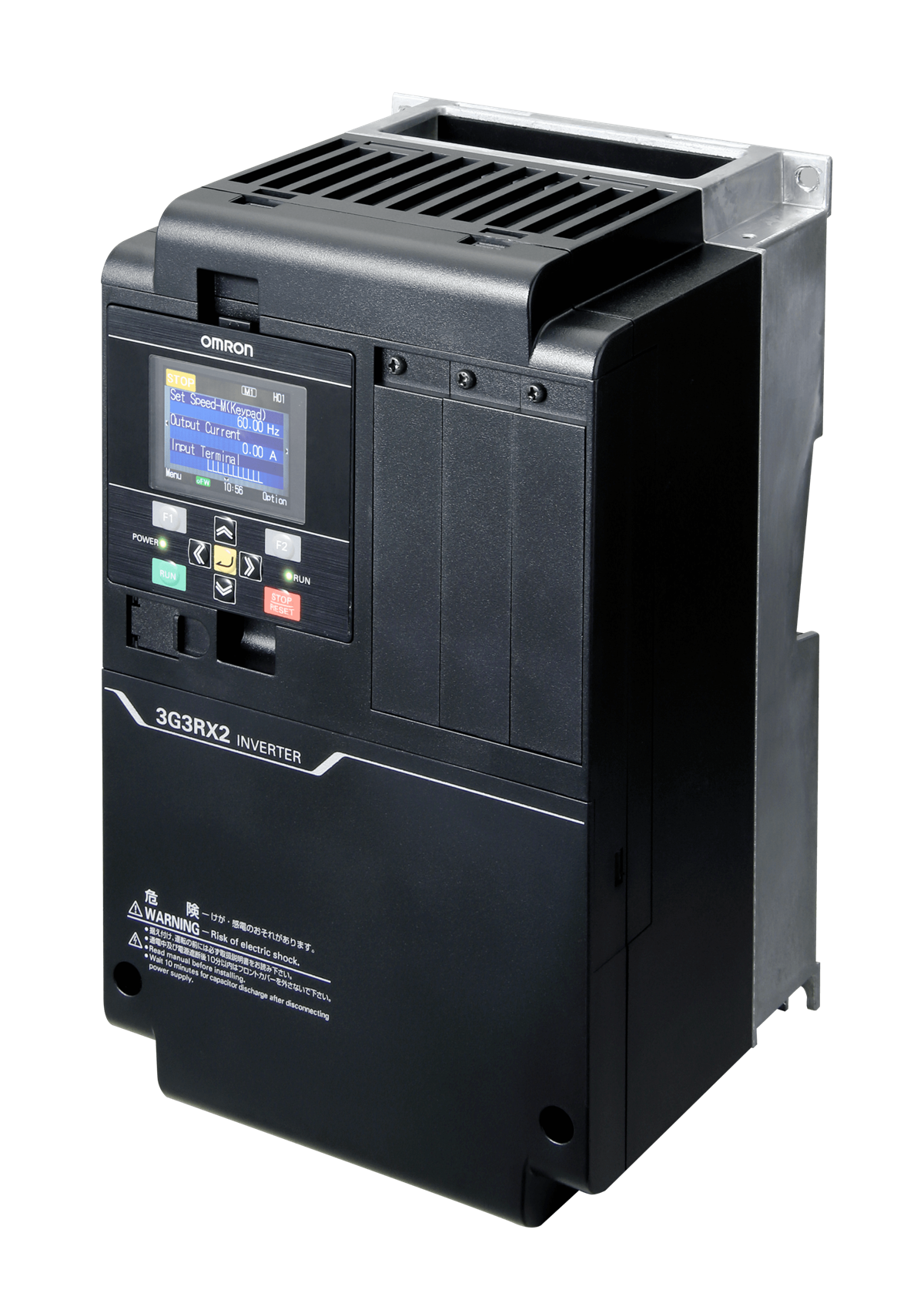

Inverter RX2, 400 V, VLD: 40 A / 18,5 kW, LD: 37 A / 18,5 kW, ND: 32 A / 15 kW, open/closed loop vector, built-in filter, max. output freq. 590Hz, IP20.
FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!
| Drive control method |
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Drive supply voltage |
400 V three phase |
| Max. motor output at constant torque (HD) |
15 kW |
| Max. motor output at variable torque (ND) |
18.5 kW |
| Built in EMC filter |
|
| Degree of protection (IP) |
IP20 |
| Finless type |
x |
| Compatible motor type |
Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions |
As inverter option |
| Communication port(s) |
Serial RS-485, USB |
| Communication option(s) |
MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave |
| Height |
390 mm |
| Width |
245 mm |
| Depth |
190 mm |
| Weight |
8500 g |
